McMurdo SmartFind G8+ AIS EPIRB – Manual

SmartFind G8+ AIS EPIRB – Manual

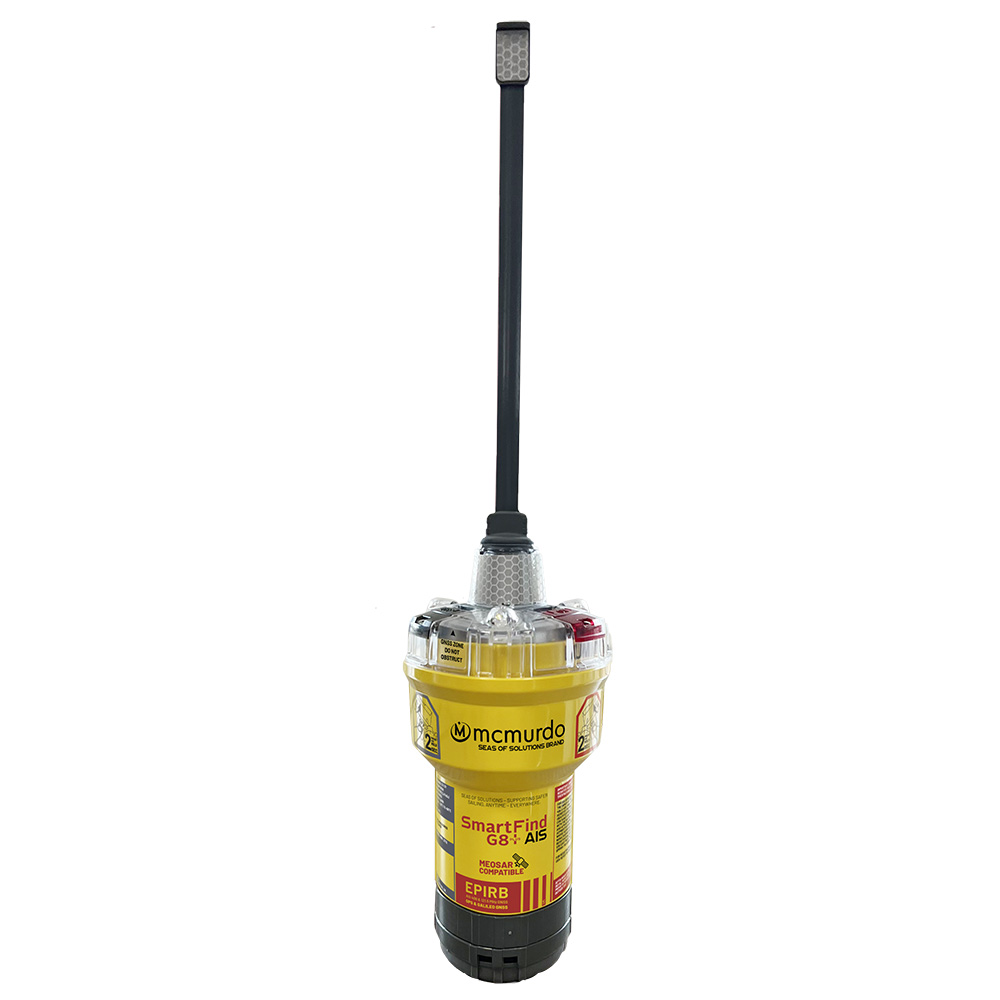

The SmartFind G8 PLUS AIS EPIRB includes an AIS locating signal and an infrared (night-vision) optical signal to aid in detecting survivors in low-light conditions.

The McMurdo SmartFind G8 PLUS EPIRBs benefit from an AIS locating signal, visible to AIS receiver-equipped vessels in the vicinity, and an infrared (night-vision) optical signal to aid detection of survivors in low-light conditions. Infrared is detectable at greater range and in poorer conditions than standard EPIRB lights, further accelerating recovery times.

This is a rugged, multi-GNSS 406MHz satellite EPIRB with both GPS and Galileo receivers and a unique inbuilt AIS optimized for the new MEOSAR system. Also, this EPIRB is supplied with a unique SmartTransfer bracket to prevent accidental activation, once manually removed from the bracket, the EPIRB is activated manually or via water contact.

Operating Frequencies:

• 406MHz
• 121.5MHz
• Multi GNSS
• AIS

Features:

• Built-in AIS for localized rescue
• Multi-GNSS, including Galileo & GPS
• Meets IMO requirement: MSC.471 (101)
• Infrared (night-vision) optical signal
• Accidental activation protection
• Rugged construction optimized for commercial environments
• Hands-free carry strap
• 360-degree strobe
• It comes with a safety bracket
• 10-year battery life
• Sealed Electronic Unit
• Sealed Battery Unit
• Manual release

Specifications:

406 MHZ Transmitter:

• Frequency: 406.040 MHz
• Power Output: 5W nominal
• Modulation: BSPK (16KOG1D)

121.5 MHZ Transmitter:

• Frequency: 121.5 MHz
• Power Output: 70 mW nominal
• Modulation: AM Swept tone (3K20A3X)

AIS Transmitter:

• Frequencies: 161.97O MHz (AIS1); 162.025 MHz (AIS2)
• Power Output: 1 W EIRP
• Modulation: GMSK/FM (16K0GXW)

GNSS Receiver:

• Constellations: GPS, Galileo
• Frequencies: 1575.42 MHz (GPS, Galileo)
• Sensitivity: -167 dBm minimum
• Satellites Tracked: 92 channels

Optical Homer:

• Day and Night Vision Strobe: 3 points of high-intensity LEDs
• Light Output: 0.75 cd / 2.5 mW/sr minimum
• Flash Rate: 23 flashes per minute

Battery:

• Type: lithium iron disulfide
• Operating Life: 48 hours minimum
• Shelf Life: 10 years from date of manufacture (see Note 1)

Environment:

• Operating Temperature: -20 °C to +55 °C (-4 °F to +131 °F)
• Storage Temperature: -30 °C to +70 °C (-22 °F to +158 °F)
• Automatic Release Depth: 4 m maximum

Dimensions (EPIRB):

• Weight 710 g
• Height, width, and depth: 425 x 105 X 105 mm (incl. antenna)
• Length of Antenna: 225 mm

Dimensions (Manual Bracket):

• Weight: 110 g
• Height/Width/Depth: 135 x 125 x 125 mm

Standards:

• COSPAS-SARSAT: C/S T.001; C/S T.007 – Pending
• Europe/UK: MED / UKCM – Pending
• USA: USCG & FCC – Pending
• International Standards: IEC 61097-2 ED4 / IEC 60945 incl. Corrigendum1 (Portable) / IEC 61108-1 (GNSS variant) / RTCM 11000.5 / ITU-R M.1371-5 / Industry Canada RSS-287 / AS/NZS 4280.1
• IMO regulations: MSC.471(101): A.662(16); A.694(17); A.814(19)

Note 1: As a responsible manufacturer, McMurdo recommends a 5-year health check at the nearest McMurdo-approved service agent. Shore-based maintenance mandated vessels, battery health checks, or replacements should be carried out by flag Administration requirements and not exceeding 5 years.

Note 2: This device has not been authorized as required by the rules of the Federal Communications Commission. This device is not, and may not be, offered for sale or lease, or sold or leased until authorization is obtained.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
