Shakespeare 5230 14′ VHF Antenna

$510.04

Condition: New
Manufacturer Name: Shakespeare
Antenna Band: VHF
Color: White
Construction: Fiberglass
Ferrule Type: Stainless Steel
Length (Inches): 14'
Country of Origin: CHINA
Manufacturer Part Number: 5230
Universal Product Code: 719441200084
Harmonization Code: 8529.10.40.40
Truck Freight: Yes
Oversized: Yes
Google Merchant Category: ELECTRONICS > ELECTRONICS ACCESSORIES > ANTENNAS

11 in stock

SKU: S310640 Category: Antennas Tags: Antennas, Communication, Electronics, Electronics Accessories, Shakespeare

Description

Shakespeare Galaxy 5230

14′ VHF 8dB Gain

5/8 wave over 1/2 wave dipole

The ultra-performer, Shakespeares Style 5230 is the most effective 8dB antenna system available anywhere, thanks to its increased signal capture area.

Brass and copper elements for maximum range and efficiency
Stainless steel ferrule with standard 1″-14 thread

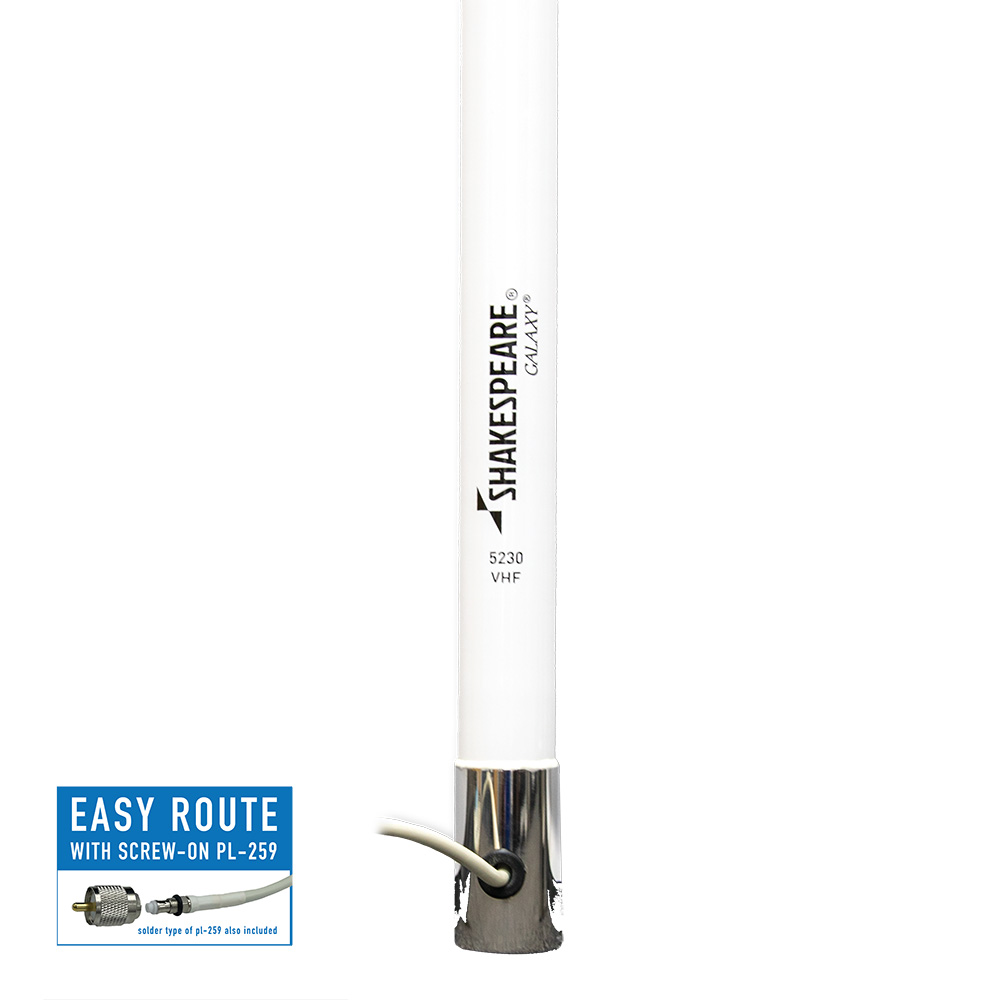

Includes 20 feet of RG-8/X cable and a PL-259 connector
Suggested mount: Shakespeare Style 409-R or 410-R Mounting Kit

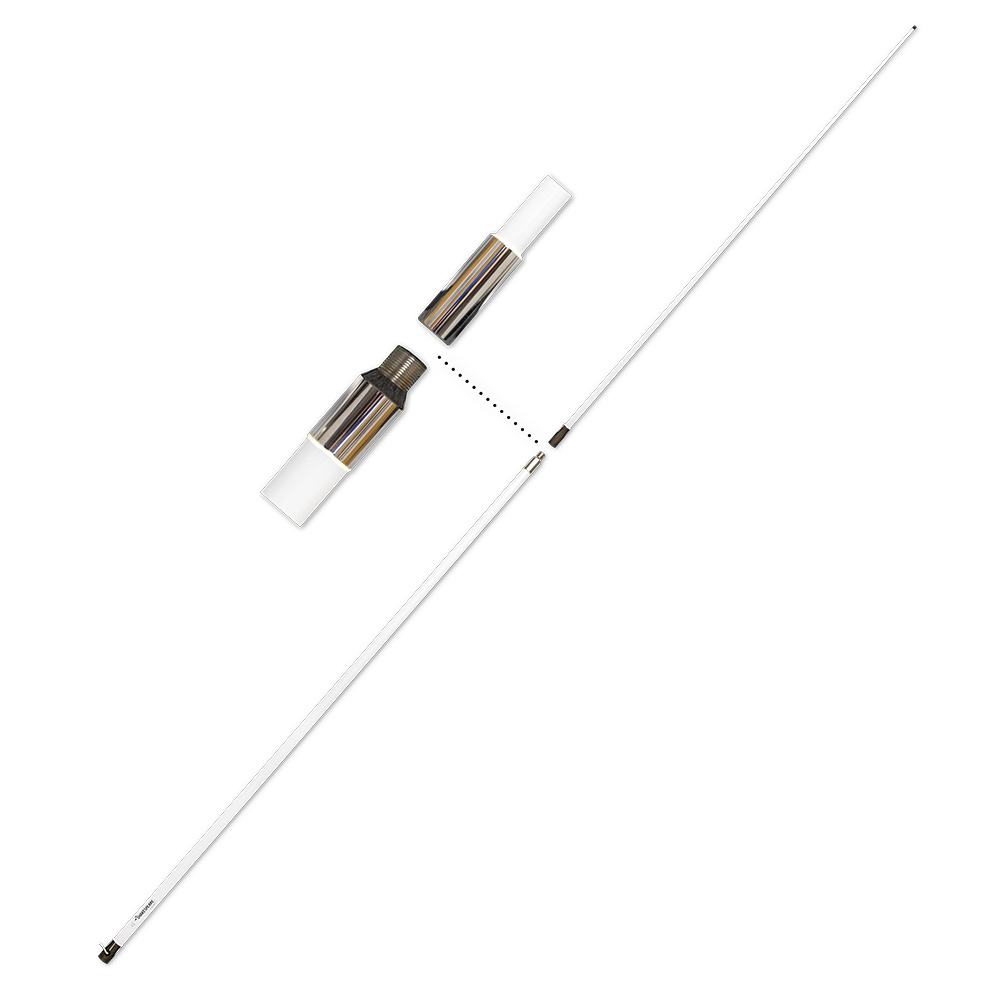

Two sections: Base 94″, Tip 74″ –
Shakespeare Limited Warranty: 5 years

Technical Specifications:

Frequency:	VHF Marine Band
Bandwidth:	3 MHz within 2.0:1 VSWR
SWR:	nominally 1.5:1 at 156.8 MHz
Impedance:	50 ohms
Gain:	8 dB
Max Input (Watts):	200 watts
DC Ground:	YES
Height (feet):	14
Polarization:	Vertical

Additional information

Weight	176 oz
Dimensions	98 × 3 × 3 in
Manufacturer Name	Shakespeare
Antenna Band	VHF
Construction	Fiberglass
Ferrule Type	Stainless Steel
Length (Inches)	14'
Color	White
Country of Origin	CHINA
Google Merchant Category	ELECTRONICS > ELECTRONICS ACCESSORIES > ANTENNAS
Truck Freight	Yes
Oversized	Yes
Condition	New
